Rocker arm high flux cartridge filter

The rocker arm high-flux core filter is mainly developed for pipes with large diameter and high flow rate. The rocker arm quick-opening design makes it easier to open the lid. The filter element of pp and ptfe material with internal pressure and external pressure can be customized according to customer needs. The thickness of the cylinder is based on 3mm and can be customized according to customer pressure requirements.

filter material

304/316/2205 two-way steel can be selected to meet the working conditions of complex filtering requirements.

Rocker Bag Filter

Industrial multi-bag filter

Suitable for high flow production processes

ØEasy-to-use sealing operation minimizes downtime

ØThe filter switch mechanism adopts the industry-approved rocker arm design, which is safe and reliable

ØThe design of side inlet and bottom outlet ensures that the liquid can be completely discharged, which can reduce the tangent position of the height

Ø Pipeline installation is more convenient

Ø The design and volume of the filter are compact to minimize the loss of liquid; there are various designs of 1-24 bags

technical parameter

ØSurface treatment: mirror polishing/sandblasting ØDesign pressure: 1.0Mpa ØMaximum operating temperature: 150℃ ØMaterial: SUS304/316L, etc. ØConnection method: flange

Rocker arm multi-core filter

Rocker arm multi-core filter is mainly used for liquid filtration in pure water, electroplating solution, printed circuit board, solvent, paint, detergent, medical water, oral industry, pharmaceutical injection, beverage, wine and other industries.

Different size, different structure design

Suitable for a variety of high-flow production processes

According to the size of the processing flow, different numbers and sizes of filter elements can be configured. According to different production conditions, filters with different structures can be selected.

The top of the filter with more than 12 cores is designed as a rocker structure, which is convenient to open.

The hygienic series are all mirror polished, with no dead angle, and the polishing accuracy can reach up to 0.3μm.

Microporous pleated cartridge filter

  Microporous pleated filter element, as the name implies, uses pleated filter element as filter element (also can carry tubular filter element such as PP meltblown filter element, wire wound filter element, activated carbon filter element as filter element), pleated filter element is an advanced fixed deep-seated filter element. The filter element can filter out liquid, particles and bacteria above 0.1 microns, with high filtration accuracy, fast filtration speed, less adsorption, no media falling off, no leakage, acid and alkali resistance, corrosion resistance, easy cleaning, and can be recoiled Function and other advantages, it is an ideal filtration equipment for biomedical pure water, beverage, biochemical water treatment, environmental protection and other industries.

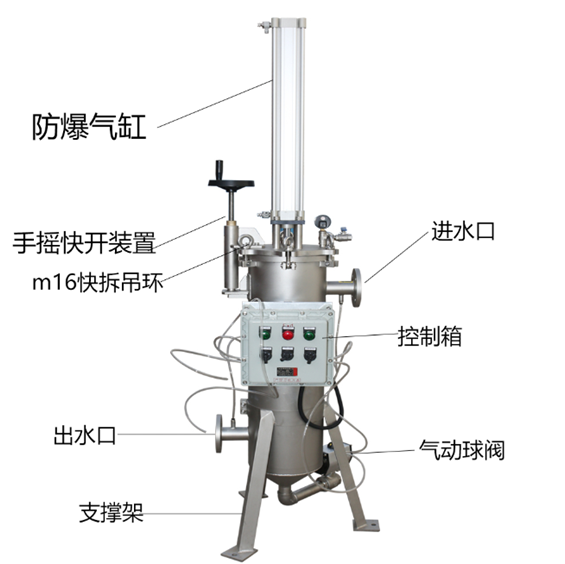

Pneumatic scraper self-cleaning filter

  Pneumatic scraper self-cleaning filter, this filter is mainly composed of (explosion-proof cylinder, m16 quick-release lifting ring, manual lifting quick-opening device, cylinder stainless steel 304/316L stainless steel material, explosion-proof control box, electric/pneumatic drain valve, Schneider Electric Components, inlet and outlet flanges of national standard, the interior is composed of stainless steel wedge-shaped mesh metal filter element, stainless steel shaft, and scraper made of polytetrafluoroethylene).

Our filter is not only used for water filtration, but also widely used for self-cleaning and filtration of viscous materials such as solvents, acid and alkali liquids, polymers, coatings, etc., fully automatic operation, continuous online filtration, ending the heavy filter element replacement and cleaning work , does not produce disposable filtration consumables, saves the cost of consumables and environmental protection treatment cost is more efficient, the accuracy range is 20-500 microns, mainly designed for high viscosity filtration, suitable for the filtration of water and various viscous liquids, can handle viscosity up to 8000 The liquid in centipoise is widely used in water treatment, petrochemical, metallurgy, electric power, fine chemical, paint, ink, paper, food and beverage, pharmaceutical, metal processing and other industries. At the same time of filtration, automatic cleaning, automatic slag discharge, continuous filtration process, and fully automatic operation are optional. It is a beneficial choice to replace traditional manual filters or use disposable filter media filters, and can replace traditional filter elements in many fields. filter, bag filter, basket filter, vibrating screen filter, etc.

Turtle Back Single Bag Filter

  Optimum structural design to meet all filtration requirements

The best single bag filter at present, used with filter bag, can meet all strict requirements

The design of entering from the side entrance and entering the filter bag from the top can automatically divide the pressure without generating turbulent flow, reducing pressure loss and effectively protecting the filter bag.

Filtered liquid enters the filter bag directly from the top to minimize unfiltered liquid in the filter; the top cover fully compresses the filter bag to provide an excellent seal

The inner and outer surfaces of the filter can be mirror polished or sandblasted to meet different site requirements

technical parameter

Surface Treatment: Mirror Polished / Sandblasted

Design pressure: 1.2Mpa

Maximum operating temperature: 150℃

Material: SUS304/316L etc.

Connection method: flange/quick installation/thread

Applicable industries: fine chemicals, water treatment systems, papermaking, automotive industry, petrochemicals, machining, coatings, electronics, etc.

Flat cover single bag filter

Flat cover bag filter

Suitable for most filtration applications

The top cover lifting ring bolts are fastened and fixed on the filter, and the quick-release design is convenient for maintenance.

Rotating pressure ring design, can fully seal the filter bag 360°

SUS304/316L food grade stainless steel material, resistant to pressure and corrosion

The inner and outer surfaces of the filter can be mirror polished or sandblasted to meet different site requirements

technical parameter

Surface Treatment: Mirror Polished / Sandblasted

Design pressure: 1.0Mpa

Maximum operating temperature: 120℃

Material: SUS304/316L

Connection method: flange/quick installation/thread

Widely used in water treatment, petrochemical, metallurgy, electric power, fine chemicals, coatings, food and beverage, pharmaceutical, metal processing and other industries.

Concave cover single bag filter

Concave cover single bag filter

Suitable for most filtration applications

The top cover lifting ring bolts are fastened and fixed on the filter, quick release design, easy maintenance

Rotating pressure ring design, can fully seal the filter bag 360°

SUS304 stainless steel casting top cover, resistant to compression and corrosion

The inner and outer surfaces of the filter can be mirror polished or sandblasted to meet different site requirements

technical parameter

Surface Treatment: Mirror Polished / Sandblasted

Design pressure: 1.2Mpa

Maximum operating temperature: 150℃

Connection method: flange/quick installation/thread

Applicable industries:

Fine chemicals, water treatment systems, papermaking, automotive industry, petrochemicals, machining, coatings, electronics, etc.
