Medium-sized waste liquid recovery machine
Product information
Equipment name: Solvent recovery machine
Purpose: For the recovery and treatment of oily wastewater under reduced pressure and low temperature evaporation
Processing objects: cutting fluid, cleaning fluid, sewage concentrate, etc.
Model: W100S
Design capacity: 100L/H
Equipment size: 2900mmW×1600mmL×2000mmH (body size)
Total power: 30KW
Material application

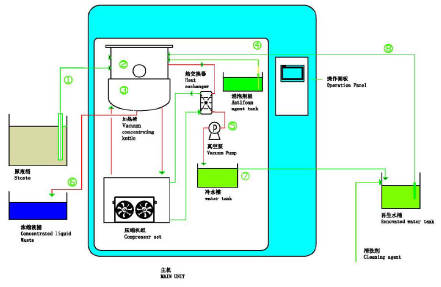

Device schematic
Configuration specifications:
Distillation regenerator
Working principle: heating and boiling under vacuum to generate steam, distillation separation and concentration of waste liquid, and separation of water and oil. Distilled water is reused, and the concentration rate can reach more than 90%
Distillation method: indirect heating of the compressor, distillation under reduced pressure, with automatic waste drainage system
Heating power: 30kw is compressor power
Vacuum pump unit
Quantity: 1 set
Working principle: vacuum extraction (negative pressure) for vacuum distillation tank
Specifications and models: 1 group: Baker vacuum pump U4.7, power 1.5kw, ultimate pressure-100kpa
Action mode: oil seal pump
Displacement: 10800L/min/set
Cooling: The heat exchanger is connected to the coolant, and a temperature detector is installed
filtering system
Quantity: 1 set
Working method: Circulate and filter the waste liquid to be treated in the early stage, prevent large particles of solid materials from entering the distillation tank, and classify and filter the waste liquid particulate impurities before distillation and separation
Circulation filter pump: "South" self-priming pump, power 0.75kw
Precision filter: "Biyun" bag filter
Filtration accuracy: 50μ before distillation regeneration (can be changed between 50-100 microns)
Before coarse filtration: metal filter
Inspection device: install pressure gauge and pressure switch, abnormal pressure alarm device
Remarks:
10L/hour-300L/hour can be selected according to the customer's daily processing capacity:
The power consumption of the 10L/hour model is only 4KW;
20L/hour power consumption is only 6KW;
50L/hour power consumption is only 12KW
100L/hour power consumption is only 23KW
